LightingWill WS2815 S Shape RGBIC LED Strip Light DC12V 8mm PCB SMD5050 Individually Addressable 60 LEDs/m Breakpoint Resume Non Waterproof Flowing LED Strip for Party Decoration DIY Lighting 5M 50M
LightingWill WS2815 S Shape RGBIC LED Strip Light DC12V 8mm PCB SMD5050 Individually Addressable 60 LEDs/m Breakpoint Resume Non Waterproof Flowing LED Strip for Party Decoration DIY Lighting 5M 50M
Package Included
| Voltage | Waterproof Type | Package Quantity |
|---|---|---|
| 12V | Non-Waterproof | 16.5FT(5M × 1 Roll) |
| 12V | Non-Waterproof | 165FT(5M x 10Roll) |
| 12V | Non-Waterproof | 1× 5M Strip + 1x Controller + 1x Power Supply (Complete Kit) |
Complete Kit Included:
Order & Logistics:
- Lead Time: Ships within 3–7 business days
- Packing: Cardboard box, sealed with anti-static bag
- Shipping: 7-12 days by AIR.
Product Features:
1. WS2815 Individually Addressable RGBIC LEDs
Each LED can be individually controlled, allowing every segment to display different colors and lighting effects. This enables smooth flowing multicolor animations and dynamic lighting patterns.
2. Flexible S-Shape Bendable Design
The special S-shape flexible structure allows the strip to bend horizontally and vertically, making it easy to create curves, letters, logos, or complex decorative lighting shapes.

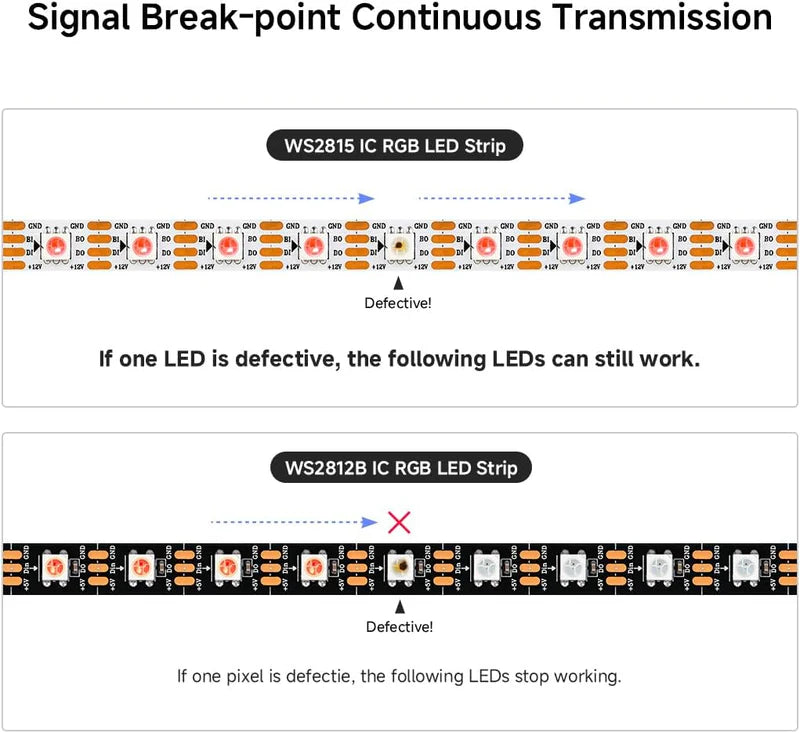

3. Breakpoint Resume Function
Built-in breakpoint resume technology ensures the remaining LEDs continue to operate even if one LED is damaged, improving reliability and stability for long LED strip installations.
4. High-Quality SMD5050 RGB LEDs
Equipped with SMD5050 RGB LEDs and a durable white PCB, providing bright and uniform color output suitable for decorative lighting applications.
5. DC12V Low Voltage & Easy Installation
Powered by DC12V low voltage and available in 5 m or bulk roll options. Suitable for party lighting, decorative lighting, and DIY lighting projects.
Product Specification:
1. LED Strip
LED Type: SMD5050 RGB
IC Type: WS2815 Individually Addressable
LED Density: 60 LEDs/M
Input Voltage: DC12V
Emitting Color: RGB Multicolor
PCB Color: White
PCB Width: 8mm
Waterproof Type: Non-Waterproof
Beam Angle: 180°
Power per LED: 0.24 W
Single LED Lumen: 18–25 lm
Grey Scale: 256
Working Temperature: -20℃ to 60℃
Storage Temperature: -30℃ to 80℃
Lifespan: 30,000 H
Dimension (per roll): 5000 × 8 × 2 mm
Weight: 150 g
2. The Controller
Features:
SPI three-channel addressable RGB LED controller, with unique dynamic, music
and DIY effects to meet your lighting and ambiance needs.
1. Support App control and2.4G remote control;
2. Support up to 600 single-wire RZ RGB LED driver ICs;
3. Built-in a variety of music and dynamic effects, support effects pause,
multi-parameter adjustable;
4. Capture music through the phone microphone, player streamer and on-board
microphone;
5. Support effect collection;
6. support DIY effects;
7. With a variety of ON/OFF animation effects;
8. With sequential channel calibration and ON/OFF timer functions;
9. Support OTA firmware upgrade.
Strip Details
Wiring Diagram:
General Information:
