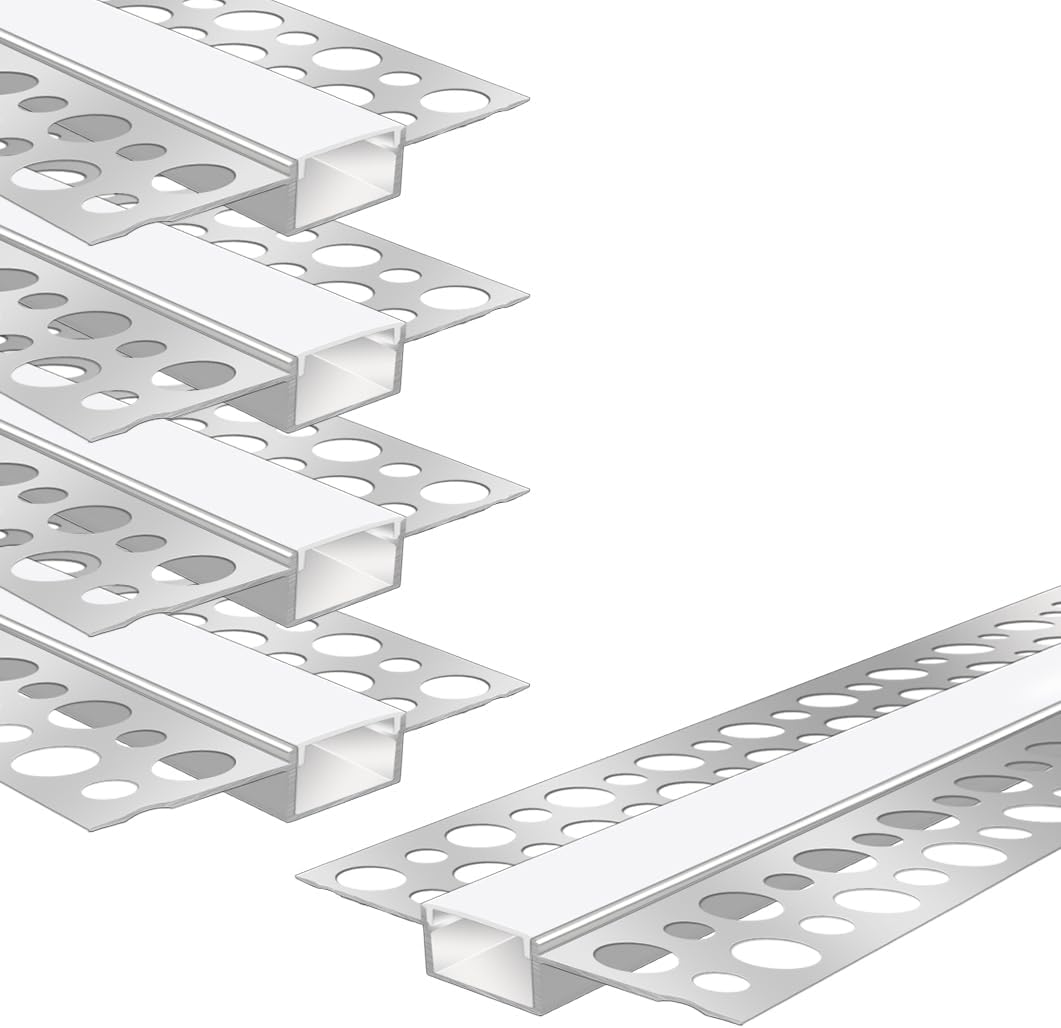

Silver TX-306 Double-Sided LED Aluminum Channel for Plaster-In Drywall, Fits LED Strips Up to 16mm Wide, with Milky White Diffuser

Key Features

• Dual Upward Lighting Design: The TX-306 profile features two upper light openings designed to create a distinctive dual upward linear lighting effect for architectural wall and ceiling applications.
• Plaster-In Drywall Installation: Designed for integration into drywall or plasterboard so the aluminum profile can blend into the surrounding surface for a clean, built-in architectural finish.
• Fits LED Strips Up to Approx. 16mm Wide: The wider internal channel accommodates LED strip lights up to approximately 16mm wide, providing more flexibility for wider LED strip configurations.
• 20 × 13 × 60mm Architectural Profile: The TX-306 combines a wider internal LED strip area with a dual-opening plaster-in structure for decorative architectural lighting installations.
• Milky White PC Diffuser: Each aluminum channel includes a matching milky white PC cover to help soften visible LED points and create a smoother, cleaner finished lighting appearance.
• Silver Aluminum Finish: The silver aluminum construction provides a clean and professional appearance suitable for residential, hospitality, retail, and commercial interior projects.
• Available in 1M, 2M & 3M Lengths: Multiple length options make the TX-306 suitable for both shorter decorative sections and longer continuous architectural lighting layouts.
• Bulk Pack Options: Available in selected 4-Pack, 6-Pack, 10-Pack, and 50-Pack configurations for residential projects, contractors, commercial installations, and larger lighting applications.
• Channel & Diffuser Only: End caps, mounting clips, screws, and other installation accessories are not included with these variants.

Specifications

• Model: TX-306
• Product Type: Dual Upward Plaster-In LED Aluminum Channel
• Color: Silver
• Installation Type: Plaster-In / Drywall Integrated Installation
• Lighting Style: Dual Upward Linear Lighting

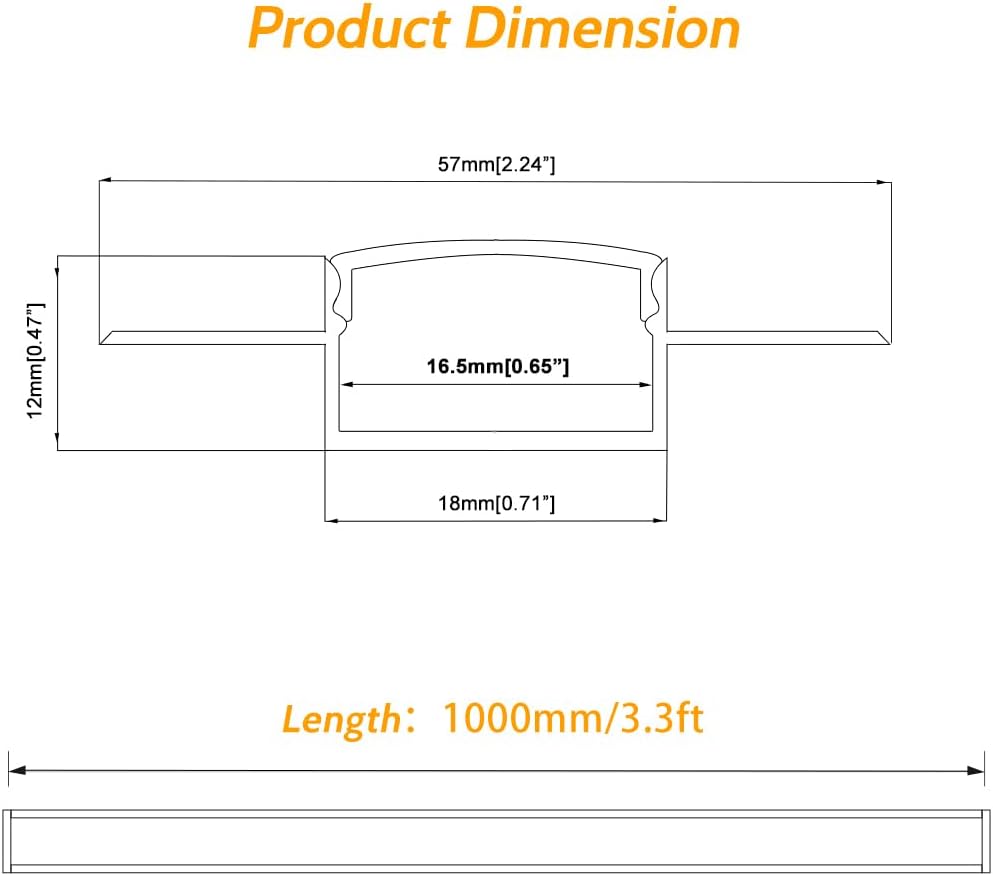

• Profile Size: Approx. 20 × 13 × 60mm
• Recommended LED Strip Width: Up to approximately 16mm
• Cover: Milky White PC Diffuser
• Available Lengths: 1 Meter / 2 Meters / 3 Meters
• Available Pack Sizes: 4-Pack / 6-Pack / 10-Pack / 50-Pack
• Accessories: Not Included

Compatibility Note: Please check the width of your LED strip before ordering. The TX-306 profile is intended for LED strips up to approximately 16mm wide.

Length & Pack Availability: 1-meter and 2-meter versions are available in 4-Pack, 6-Pack, 10-Pack, and 50-Pack options. The 3-meter version is available only in 10-Pack and 50-Pack configurations.

Accessory Note: End caps, mounting clips, screws, and other installation accessories are not included with the listed TX-306 variants.

Applications

The TX-306 is designed for integrated architectural LED lighting projects where a clean plaster-in finish, wider LED strip compatibility, and dual upward linear lighting effect are required.

• Drywall and plasterboard lighting
• Architectural linear lighting
• Wall-integrated uplighting
• Ceiling transition lighting
• Decorative recessed lighting
• Feature walls
• Hallways and corridors
• Residential interior lighting
• Hotels and hospitality spaces
• Retail and showroom lighting
• Commercial interior projects
• Custom LED strip lighting installations

Package Included

4 × 1M Pack

• 4 × 1-meter TX-306 Silver Aluminum Channels
• 4 × 1-meter Milky White PC Diffusers
• No End Caps, Mounting Clips, Screws, or Other Accessories Included

6 × 1M Pack

• 6 × 1-meter TX-306 Silver Aluminum Channels
• 6 × 1-meter Milky White PC Diffusers
• No End Caps, Mounting Clips, Screws, or Other Accessories Included

10 × 1M Pack

• 10 × 1-meter TX-306 Silver Aluminum Channels
• 10 × 1-meter Milky White PC Diffusers
• No End Caps, Mounting Clips, Screws, or Other Accessories Included

50 × 1M Pack

• 50 × 1-meter TX-306 Silver Aluminum Channels
• 50 × 1-meter Milky White PC Diffusers
• No End Caps, Mounting Clips, Screws, or Other Accessories Included

4 × 2M Pack

• 4 × 2-meter TX-306 Silver Aluminum Channels
• 4 × 2-meter Milky White PC Diffusers
• No End Caps, Mounting Clips, Screws, or Other Accessories Included

6 × 2M Pack

• 6 × 2-meter TX-306 Silver Aluminum Channels
• 6 × 2-meter Milky White PC Diffusers
• No End Caps, Mounting Clips, Screws, or Other Accessories Included

10 × 2M Pack

• 10 × 2-meter TX-306 Silver Aluminum Channels
• 10 × 2-meter Milky White PC Diffusers
• No End Caps, Mounting Clips, Screws, or Other Accessories Included

50 × 2M Pack

• 50 × 2-meter TX-306 Silver Aluminum Channels
• 50 × 2-meter Milky White PC Diffusers
• No End Caps, Mounting Clips, Screws, or Other Accessories Included

10 × 3M Pack

• 10 × 3-meter TX-306 Silver Aluminum Channels
• 10 × 3-meter Milky White PC Diffusers
• No End Caps, Mounting Clips, Screws, or Other Accessories Included

50 × 3M Pack

• 50 × 3-meter TX-306 Silver Aluminum Channels
• 50 × 3-meter Milky White PC Diffusers
• No End Caps, Mounting Clips, Screws, or Other Accessories Included

Package Note: Package quantity and channel length depend on the selected variant. All listed variants include the TX-306 aluminum channel and matching milky white PC diffuser only.

Order & Logistics

Lead Time

Usually ships within 1–3 business days when available from our local warehouses.

Delivery Information

This series follows our applicable free-shipping policy for qualifying orders over $399.

• Local Warehouse Delivery: When local inventory is available, delivery is typically approximately 3–7 days.
• Headquarters Warehouse – Standard Delivery: If local inventory is unavailable, standard delivery from our headquarters warehouse is typically approximately 9–18 days.
• Headquarters Warehouse – Express Delivery: Express delivery from our headquarters warehouse is typically approximately 5–9 days.

Long-Length Shipping Note: Shipping arrangements for 2-meter and especially 3-meter aluminum channels may vary because of the oversized package length. Final shipping method may depend on destination and order quantity.

Delivery times are estimates and may vary depending on inventory availability, destination, carrier service, customs processing, oversized-package handling, and other logistics conditions.

Installation

1. Measure the Installation Area

Confirm the required installation length, profile position, LED strip width, and drywall opening before beginning installation.

2. Confirm LED Strip Compatibility

Check that the LED strip is no wider than approximately 16mm before installing it inside the TX-306 channel.

3. Prepare the Drywall or Plasterboard

Prepare the installation area according to the TX-306 profile dimensions and planned lighting position.

4. Confirm the Lighting Direction

Check the orientation of the two upper light openings before fixing the profile so the final light distribution matches the intended design.

5. Position the Aluminum Channel

Install the TX-306 profile into the prepared drywall or plasterboard structure and make sure the channel is straight, correctly oriented, and securely positioned.

6. Finish the Plaster-In Area

Complete the surrounding plaster or drywall finish so the aluminum profile integrates cleanly with the wall or ceiling surface.

7. Install the LED Strip

Clean the internal mounting surface before applying the LED strip. Position the strip evenly inside the channel and make sure it is securely attached.

8. Route the Wiring

Plan the cable route before completing the installation and maintain sufficient access for the LED strip wiring and power connection.

9. Install the PC Diffuser

Fit the supplied milky white PC diffuser onto the aluminum channel after the LED strip and wiring are correctly positioned.

10. Test the Dual Upward Light Effect

Test the LED strip before completing the final finish to confirm that the light distribution through both upper openings matches the intended architectural lighting effect.

11. Complete the Final Finish

After testing, complete any remaining plaster, sanding, painting, or surrounding surface finishing required for the installation.

Installation Note: Installation accessories are not included with this listing. The exact installation method may vary depending on wall or ceiling construction, LED strip type, wiring layout, and project requirements.
