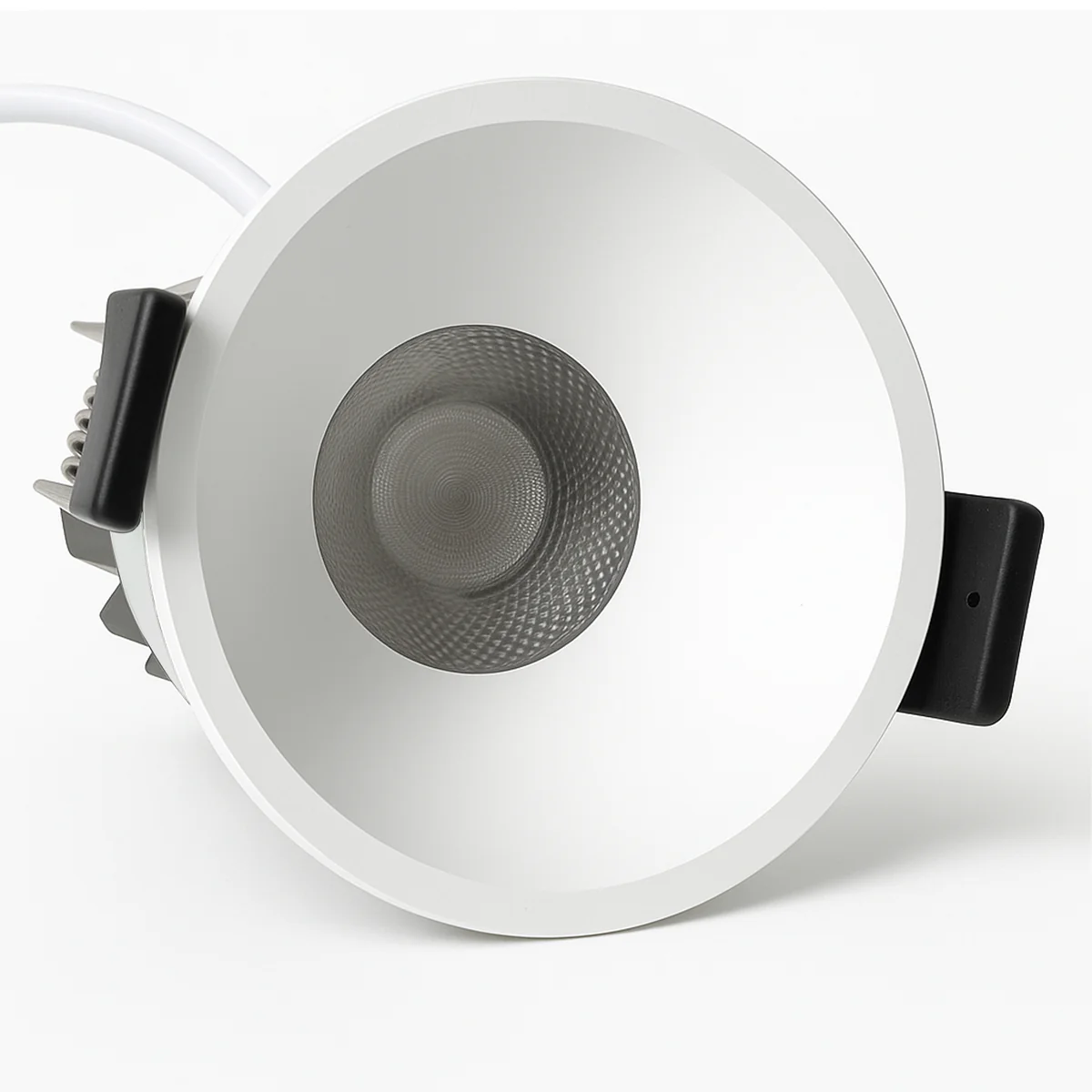

CDG-US Angled Reflector 7W (2.2″) Deep Anti-Glare Full Spectrum LED Downlight | 90–140V | 4/12 Pack | 5CCT Adjustable | 24° Beam | White Housing | CRI>97 | Architectural Recessed Lighting
About this item
- Architectural Recessed Design: Engineered for modern architectural lighting applications, this 7W downlight features a compact recessed structure and clean ceiling integration for a refined professional appearance.
- High CRI Performance: Full-spectrum COB LED technology delivers CRI>97 color rendering, helping objects, finishes, and interior materials appear natural, vivid, and accurate.
- Deep Anti-glare Optical System: The deeply recessed light source reduces direct glare and improves visual comfort while maintaining focused illumination for commercial, hospitality, retail, and residential spaces.
- Reflector Geometry Design: Precision angled reflector geometry supports controlled 24° beam distribution, reduced light spill, and enhanced accent lighting performance.
- Premium Lighting Quality: Designed with 5CCT adjustable color temperature, TRIAC dimming compatibility, flicker-free performance, and stable 90–140V operation for reliable everyday use.
Package Included
| Wattage & Pack Size | Package Included |

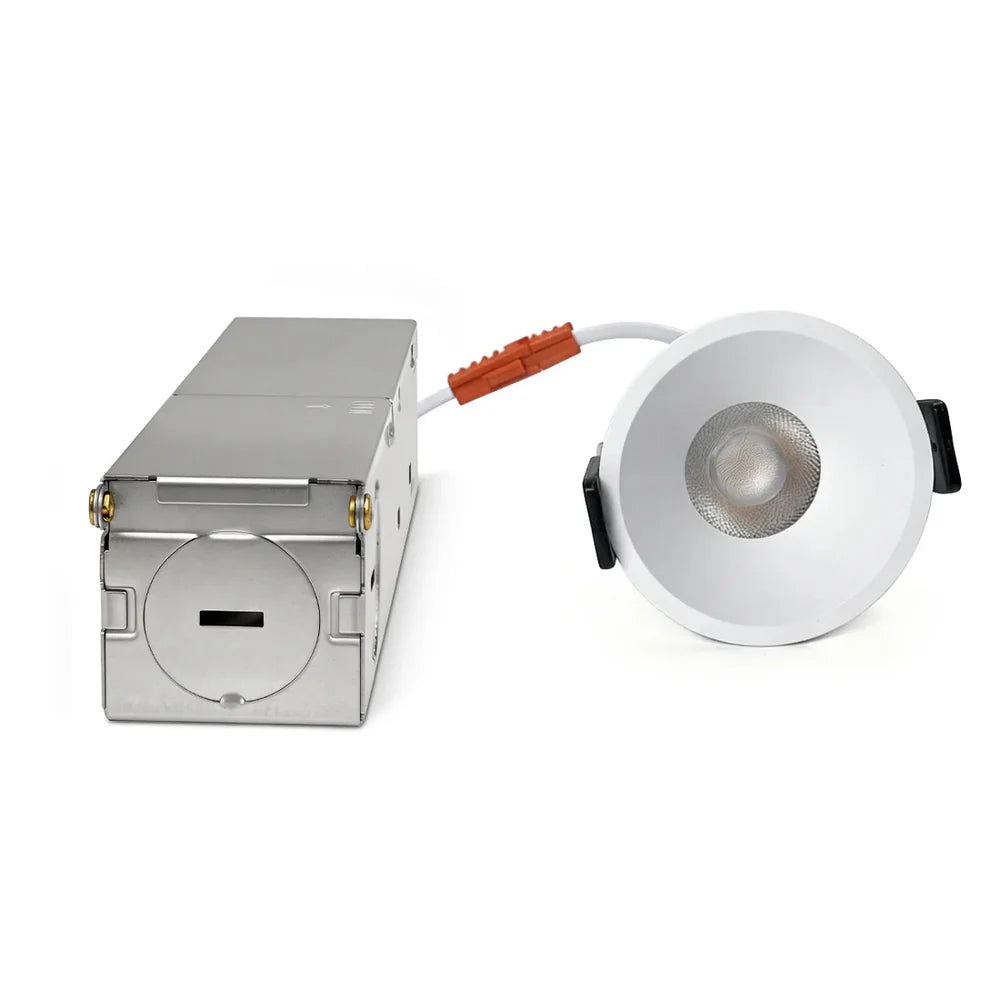

| 7W – 4Pack | 4 × Deep Anti-Glare LED Downlights 4 × TRIAC Dimmable LED Drivers 1 × User Manual |
| 7W – 12Pack | 12 × Deep Anti-Glare LED Downlights 12 × TRIAC Dimmable LED Drivers 1 × User Manual |
Order & Logistics
- Lead Time: Usually ships within 1–3 business days from local warehouses. If local inventory is unavailable, fulfillment from HQ within 10–15 business days.
- Packing: Protective cardboard box with individual foam compartments
- Shipping Note: This series enjoys our Free Shipping Policy for orders over $399. Most items in this series are stocked in our local warehouses in the US, UK, and Germany for 3–7 day delivery. If an item is out of stock locally, it will ship from our headquarters warehouse: 9–18 days standard or 5–9 days express.
Key Specifications
- Wattage: 7W
- Voltage: 90–140V AC
- Beam Angle: 24°
- Color Temperature: 5CCT Adjustable (2700K / 3000K / 3500K / 4000K / 5000K)
- CRI: >97 Full Spectrum
- Housing: White aluminum housing with black anti-glare reflector
- Dimming: Compatible with TRIAC dimmers (10–100%)
- Mounting Type: Recessed ceiling mount
- Lifespan: 50,000 hours
Technical Specifications
| Item | Specification |
| Product Name | CDG-US Angled Reflector Deep Anti-Glare Full Spectrum LED Downlight |
| Wattage (Cut-out Size) | 7W (2.2″) |
| Housing | White aluminum housing with black anti-glare reflector |
| Optical Structure | Deep anti-glare design; slanted reflector cup with angled inner wall |
| Light Source Type | Full-spectrum COB, 5CCT Adjustable |
| Beam Angle | 24° |
| Cutout Size | Ø55 mm (2.2″) |
| Product Size | D62 × H69 mm |
| Input Voltage | AC 90–140V |
| Dimmable | TRIAC dimmable |
| Color Temperature | 5CCT selectable, 2700K / 3000K / 3500K / 4000K / 5000K |
| CRI | >97 |
| Light Efficacy | 75 lm/W |

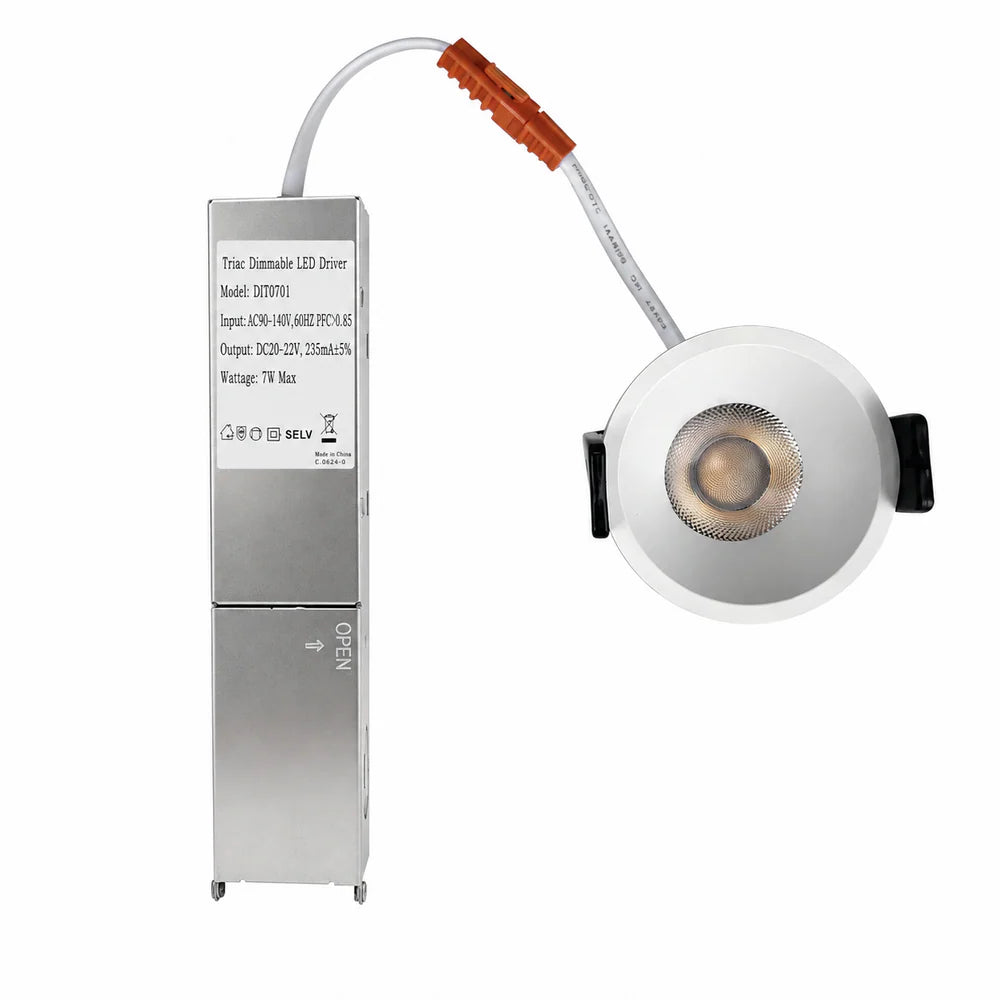

| Driver / Power Supply | Metal housing driver; TRIAC dimmable; 5CCT DIP-switch driver |
| Flicker | Flicker-free |
| Blue Light | Low blue light |
| Installation Type | Recessed ceiling mount |
| Application | Architectural recessed lighting with deep anti-glare performance for residential and commercial interiors |
| Use Environment | Indoor use only |
Usage Notes / Installation Tips
- Ensure power supply is disconnected before installation or wiring adjustment
- Confirm cut-out size and ceiling depth before mounting
- Choose appropriate color temperature using the 5CCT switch before installation
- Use with compatible TRIAC dimmers for optimal dimming performance
- Recommended for dry and damp locations; avoid direct water exposure
Applications
- Commercial: retail stores, showrooms, galleries, and offices
- Hospitality: hotels, restaurants, cafes, and reception halls
- Residential: living rooms, kitchens, hallways, and staircases
- Architectural & Accent Lighting: focused illumination with glare control
