LightingWill WS2812 Side Emitting RGBIC LED Strip Light DC5V 12V 5mm PCB SMD4040 Individually Addressable 60 LEDs/m Non Waterproof Flowing LED Strip for Party Decoration DIY Lighting 5M 50M
LightingWill WS2812 Side Emitting RGBIC LED Strip Light DC5V 12V 5mm PCB SMD4040 Individually Addressable 60 LEDs/m Non Waterproof Flowing LED Strip for Party Decoration DIY Lighting 5M 50M
Package Included
| Voltage | Waterproof Type | Package Quantity |
|---|---|---|
| 5V | Non-Waterproof | 16.5FT(5M × 1 Roll) |
| 5V | Non-Waterproof | 165FT(5M x 10Roll) |
| 5V | Non-Waterproof | 1× 5M Strip + 1x Controller + 1x Power Supply (Complete Kit) |
| 12V | Non-Waterproof | 16.5FT(5M × 1 Roll) |
| 12V | Non-Waterproof | 165FT(5M x 10Roll) |
| 12V | Non-Waterproof | 1× 5M Strip + 1x Controller + 1x Power Supply (Complete Kit) |
Complete Kit Included:
Order & Logistics:
- Lead Time: Ships within 3–7 business days
- Packing: Cardboard box, sealed with anti-static bag
- Shipping: 7-12 days by AIR.
Product Features:
- Individually Addressable WS2812 RGBIC – Each LED can be controlled independently, allowing dynamic flowing multicolor lighting effects for creative lighting projects.
- Side Emitting SMD4040 LEDs – Designed with side-emitting LEDs to create a smooth edge-glow lighting effect, ideal for decorative lighting and visual accent applications.
- 60 LEDs per Meter – Built with a dense 60 LEDs/M layout for consistent lighting performance along the strip.
- Dual Voltage Options – Available in DC5V and DC12V versions to meet different controller and power supply requirements.
- 5mm White PCB Design – Slim 5mm white PCB structure suitable for compact installations and clean visual appearance.
- Non-Waterproof Design – Intended for indoor lighting environments where waterproof protection is not required.
- Flexible Package Options – Available as 5M strip rolls, bulk packages, or a complete kit including strip, controller, and power supply.
- Wide Applications – Suitable for party lighting, decoration, home DIY lighting projects, ambient lighting, and creative installations.
Product Specification:
1. The LED Strip
Lighting source: SMD4040 RGB LED
LED Density: 60 LEDs/M
Input voltage: DC5V / DC12V
IC driver: WS2812
Emitting color: RGB changeable
Max power: 14.4 W/m
PCB color and width: White PCB, 5 mm
Waterproof grade: Non-Waterproof
Beam angle: 120°
Lifetime: 30000 hours
Working temperature: -20℃ to 60℃
Storage temperature: -30℃ to 80℃
Strip length: 5 M per roll
Dimension: 5 M (L) × 5 mm (W) × 2 mm (H)
Package information: 1 roll packed on reel, sealed in anti-static bag and carton box
2. The Controller
Features:
SPI three-channel addressable RGB LED controller, with unique dynamic, music
and DIY effects to meet your lighting and ambiance needs.
1. Support App control and2.4G remote control;
2. Support up to 600 single-wire RZ RGB LED driver ICs;
3. Built-in a variety of music and dynamic effects, support effects pause,
multi-parameter adjustable;
4. Capture music through the phone microphone, player streamer and on-board
microphone;
5. Support effect collection;
6. support DIY effects;
7. With a variety of ON/OFF animation effects;
8. With sequential channel calibration and ON/OFF timer functions;
9. Support OTA firmware upgrade.

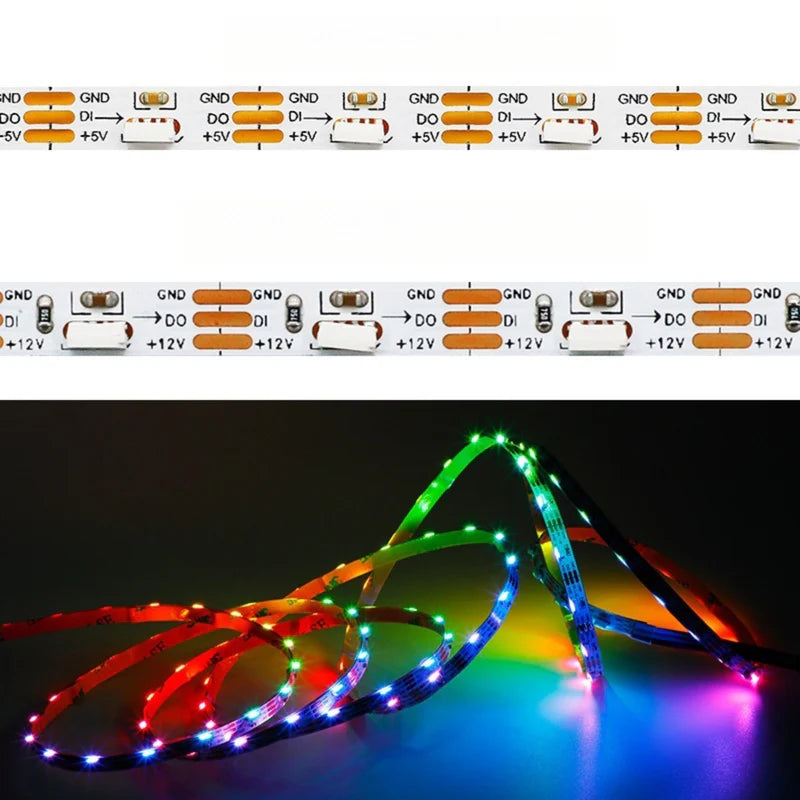

Strip Details
Wiring Diagram:
General Information:
